Description

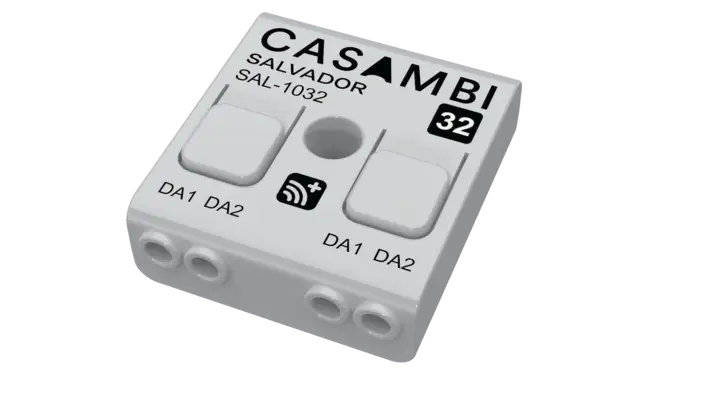

The Salvador Series 1000 DALI controllers product family includes three models: SAL-1016, SAL-1032 and SAL-1064.

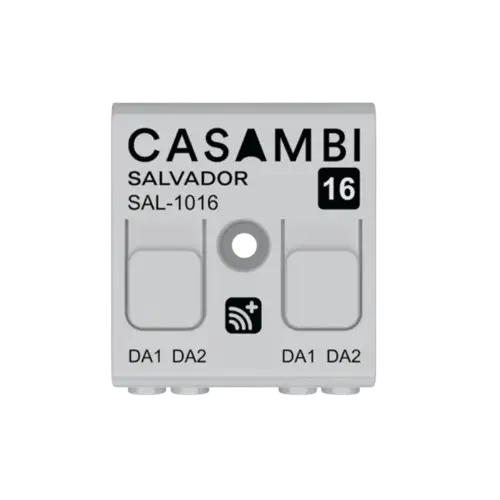

• SAL-1016: Can address up to 16 DALI driver addresses.

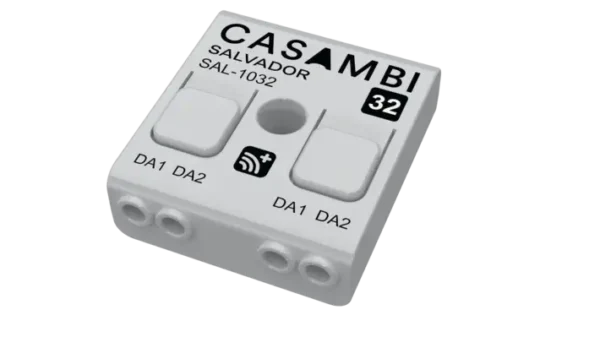

• SAL-1032: Can address up to 32 DALI driver addresses.
• SAL-1064: Can address the maximum allowed 64 DALI driver addresses.

The Salvador Series 1000 DALI controllers seamlessly integrate wired DALI drivers into the Casambi system. When integrated, DALI luminaires appear as virtual luminaires in the Casambi network. Notably, this product supports industry standards such as DALI D4i, DALI DT6, and DALI DT8.

Lighting controls designers should note that DALI switches and DALI sensors must not be connected to Salvador Series 1000 DALI controller products. Casambi Ready and EnOcean switches and sensors can be used.

The Salvador 1000 series DALI controllers require an external power supply for the DALI bus.

The Salvador Series 1000 DALI controllers allow the addressing, programming and control of wired DALI drivers individually from the Casambi App. They enable the creation of hybrid networks consisting of both Casambi Ready and DALI devices. All DALI drivers connected to a Salvador DALI controller can be easily programmed and controlled in the same way as Casambi Ready devices via the Casambi App. This eliminates the need for complex DALI configuration software, or a DALI specialist.

Input

• Voltage: 9,5–22,5 VDC
• Input current when idle, Iidle: 5 mA
• Peak input current, Ipeak: 30 mA
• Max. DALI bus current: 250 mA
• Standby power: < 0,2 W

DALI Output

• SAL-1016 product variant: 16 DALI addresses
• SAL-1032 product variant: 32 DALI addresses
• SAL-1064 product variant: 64 DALI addresses

Radio transceiver

• Operating frequencies: 2402…2480 MHz
• Maximum output power: +8 dBm

Operating conditions

• Ambient temperature, ta : -20 °C to +55 °C
• Max. case temperature, tc : +65 °C
• Storage temperature: -25…+75 °C
• Max. relative humidity: 0…80 %, non-cond.

Mechanical data

• Dimensions: 40,4 x 36,3 x 14,0 mm
• Weight: 15 g
• Degree of protection: IP20 (indoor use only)

Connectors

• Wire range, solid: 0,5–1,5 mm², 16–20 AWG
• Wire strip length: 6–8 mm

Insulation

• Casing to DALI: Reinforced
