Description

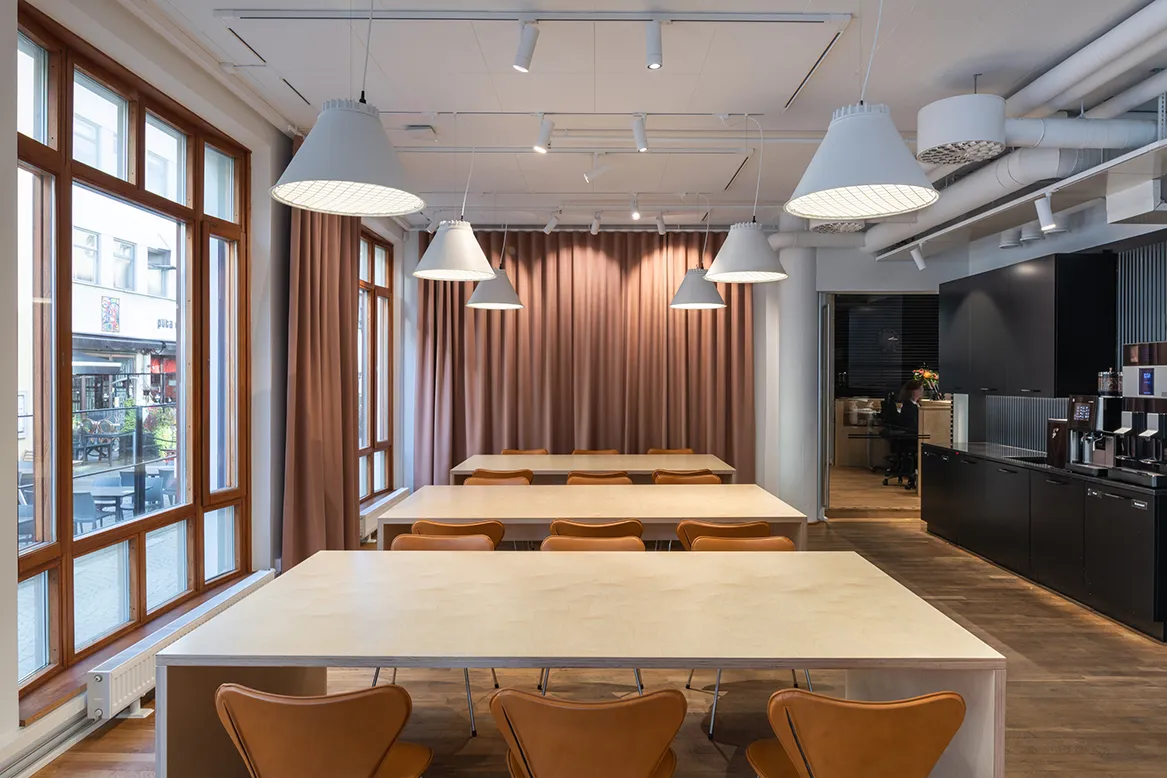

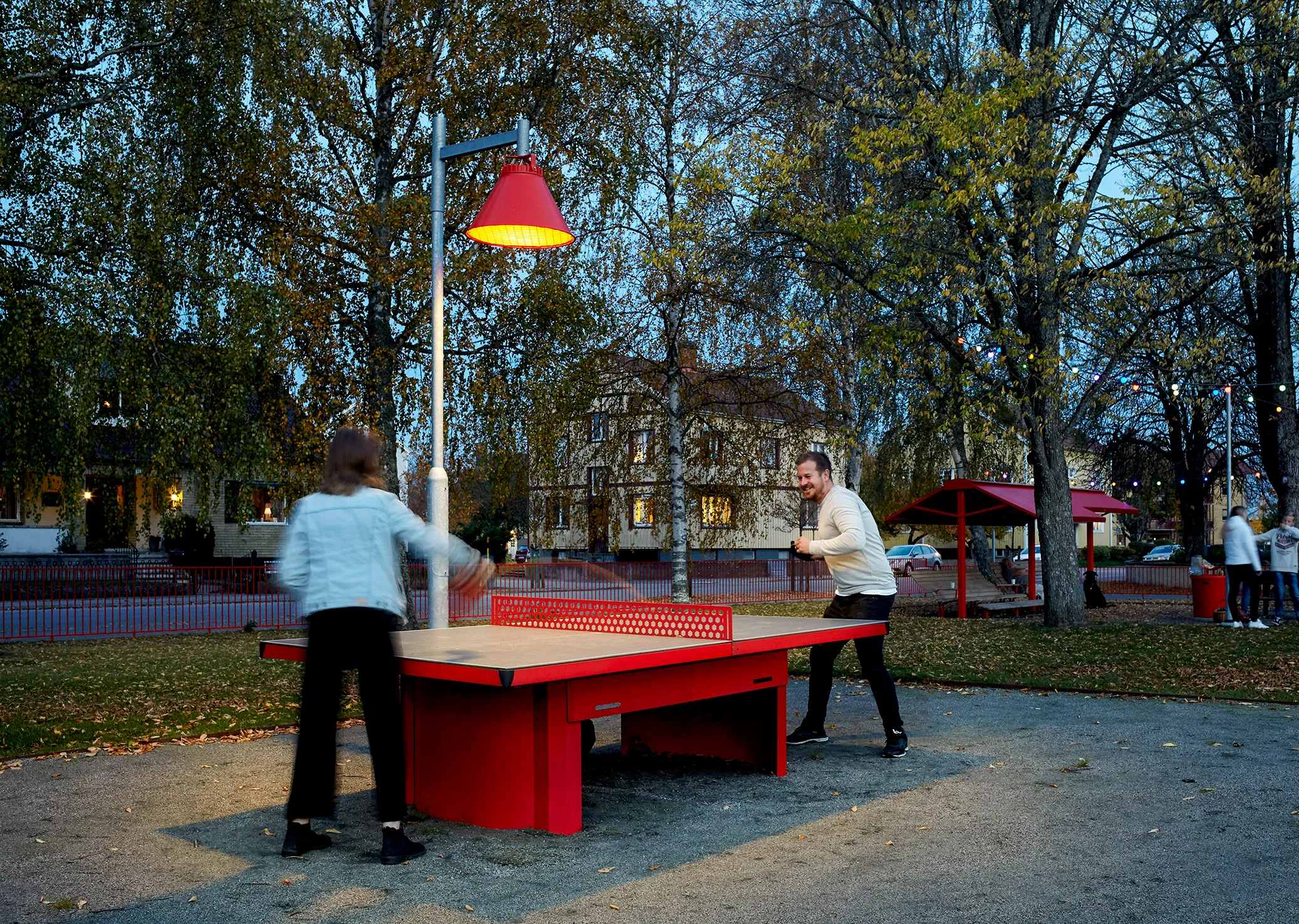

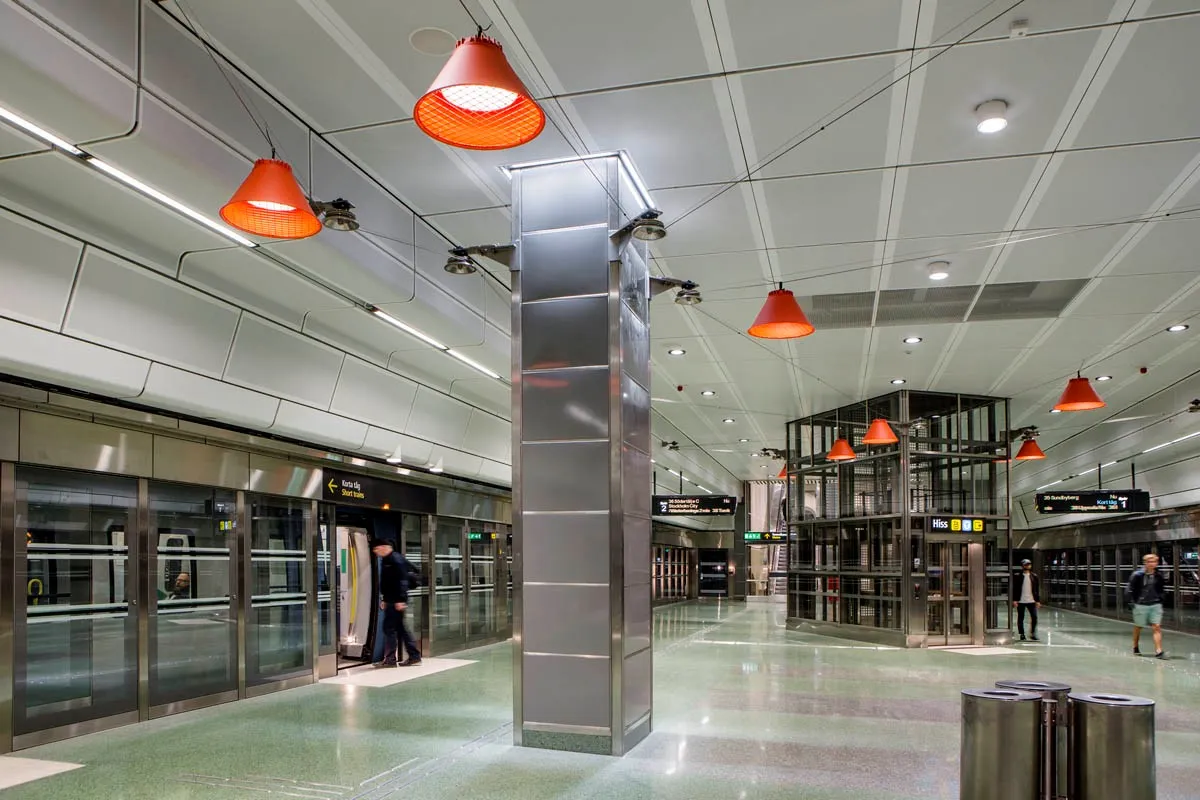

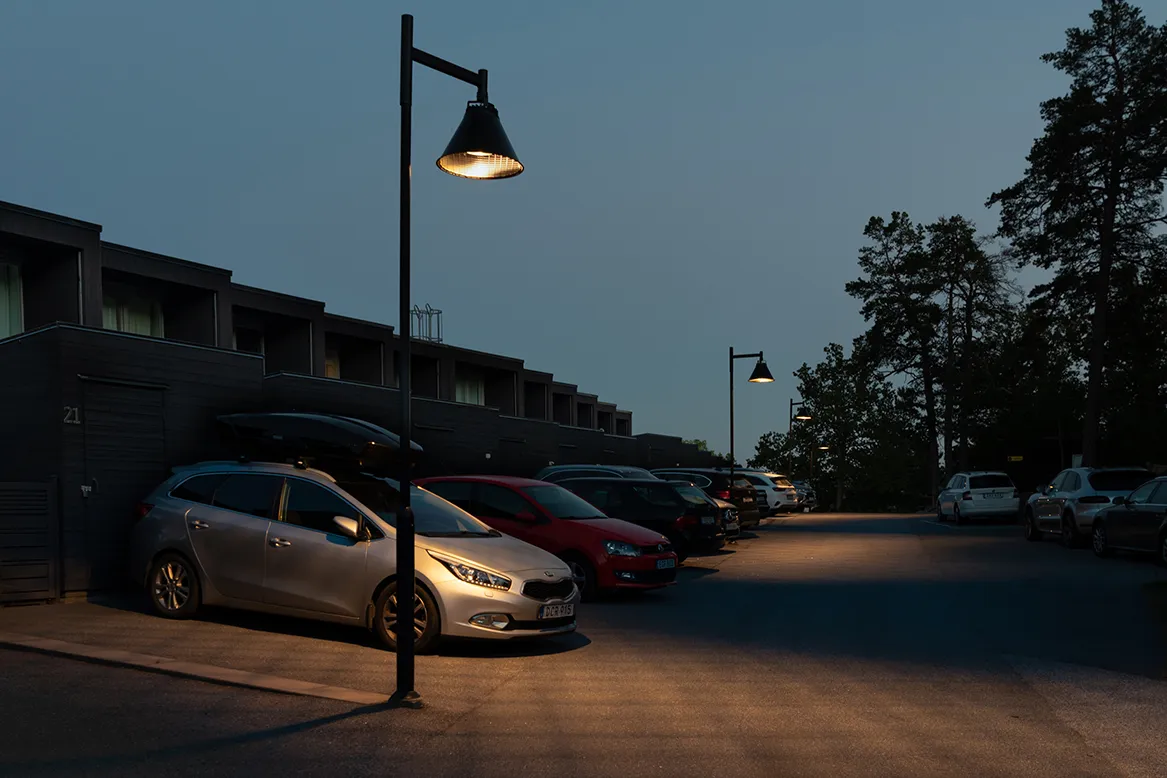

CITY – With its archetypal shape and generous diameter, around half a metre, City has a wide range of applications: outdoor or indoor, enhancing retail environments, industries and public transport. There is no risk of glare as the LED sits high in the characterful, steep cone, which also hides the cast cooling flange.

Finish

Outer shade in painted aluminum. Internal shade in white painted aluminum. Can be made without grid on request.

LED info

System power 23W, 28W. Luminaire Luminous Flux 2215LM, 2455LM.
CCT 3000K. SDCM 3. CRI >80. L80 80.000h.

Installation

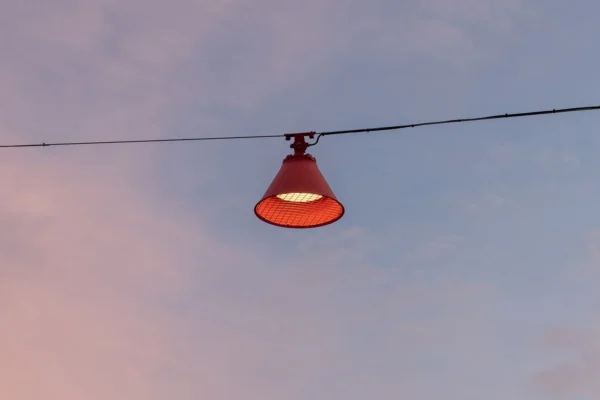

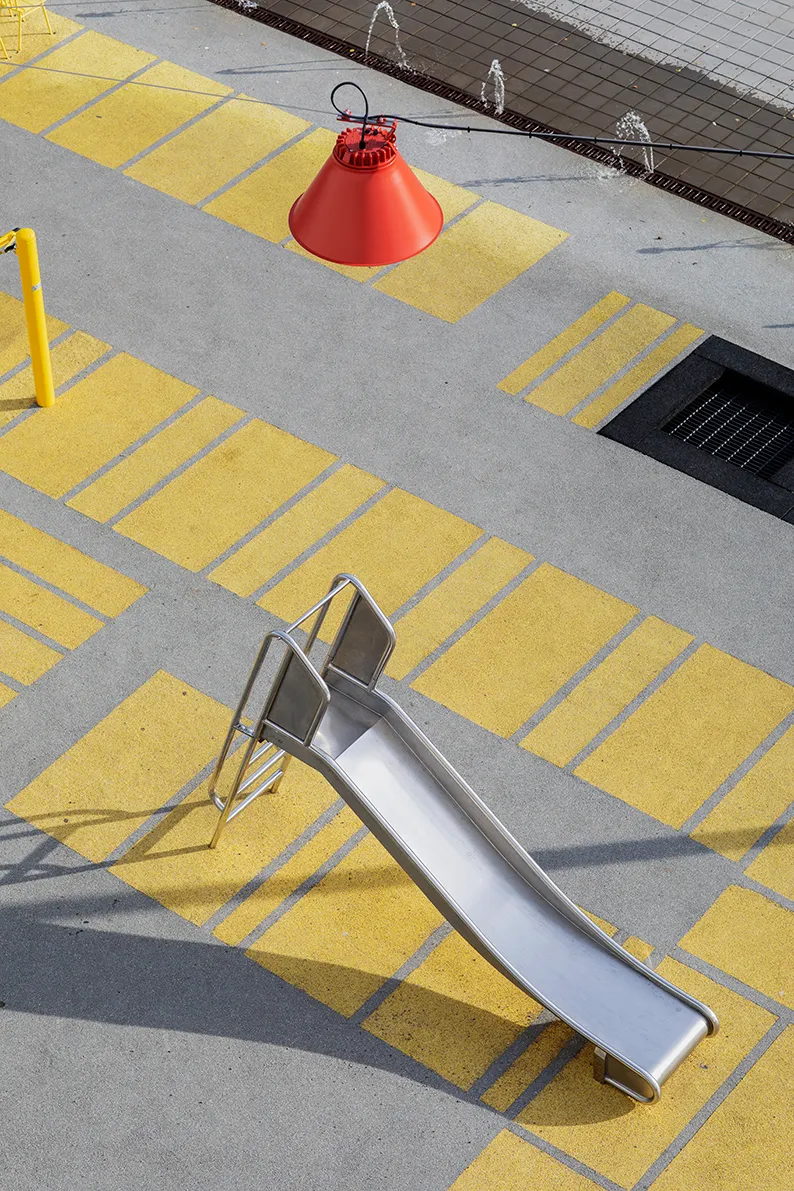

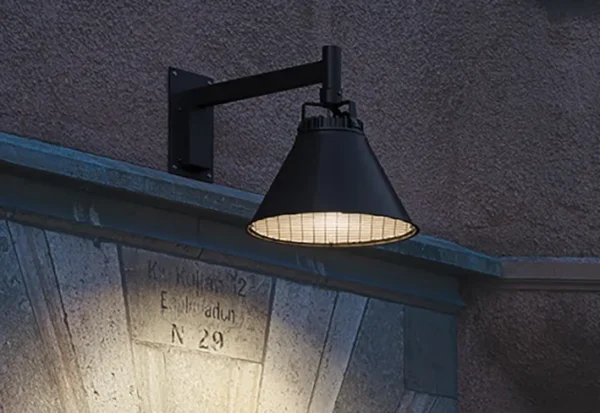

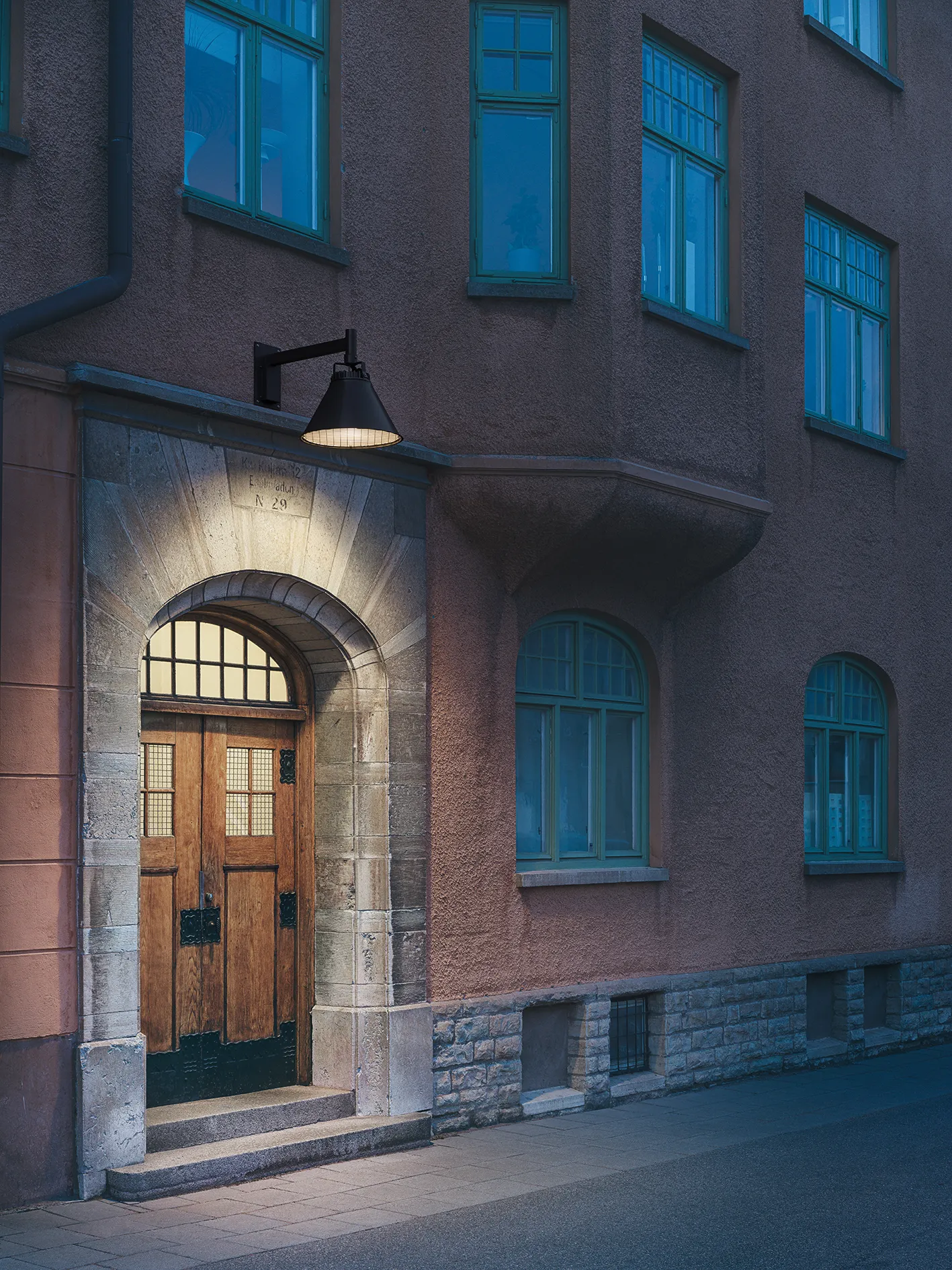

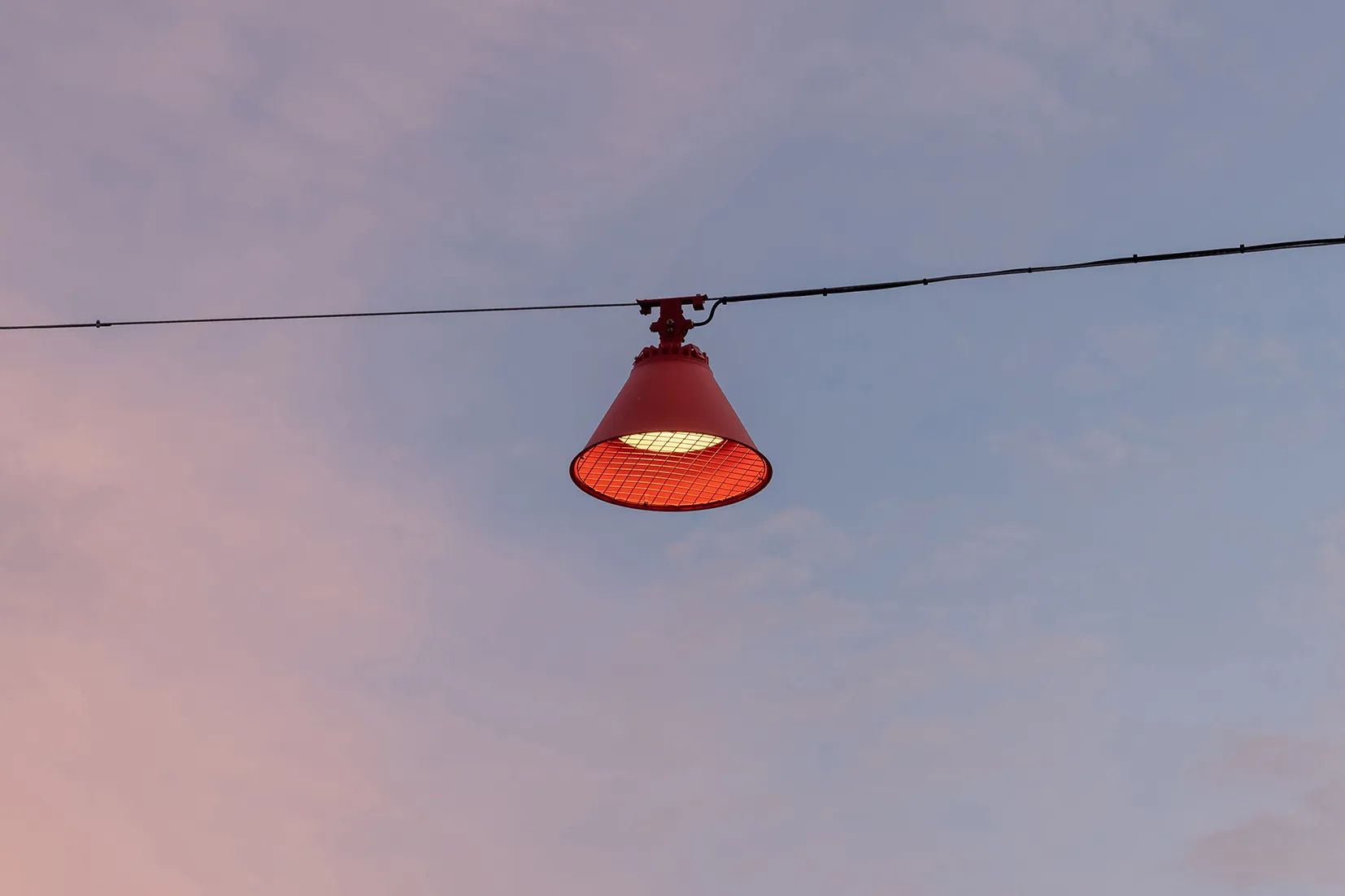

Surface mounted wall and Suspended through wire installation

Connection

Junction box in the wall bracket. Conduit entry.

Terminal block 3x4mm2 (on/off), 5x4mm2 (DALI).

Classification

wall  mounted : IK 10, IP 65.

Catenary : IK 07, IP 54

Design

Thomas Bernstrand 2016.

Standard colours  : Black and Beige grey

Other colours on request.
