Description

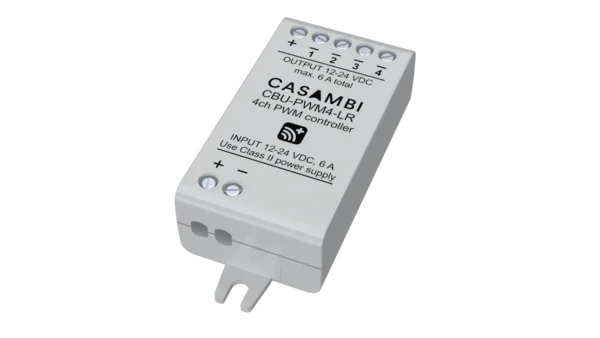

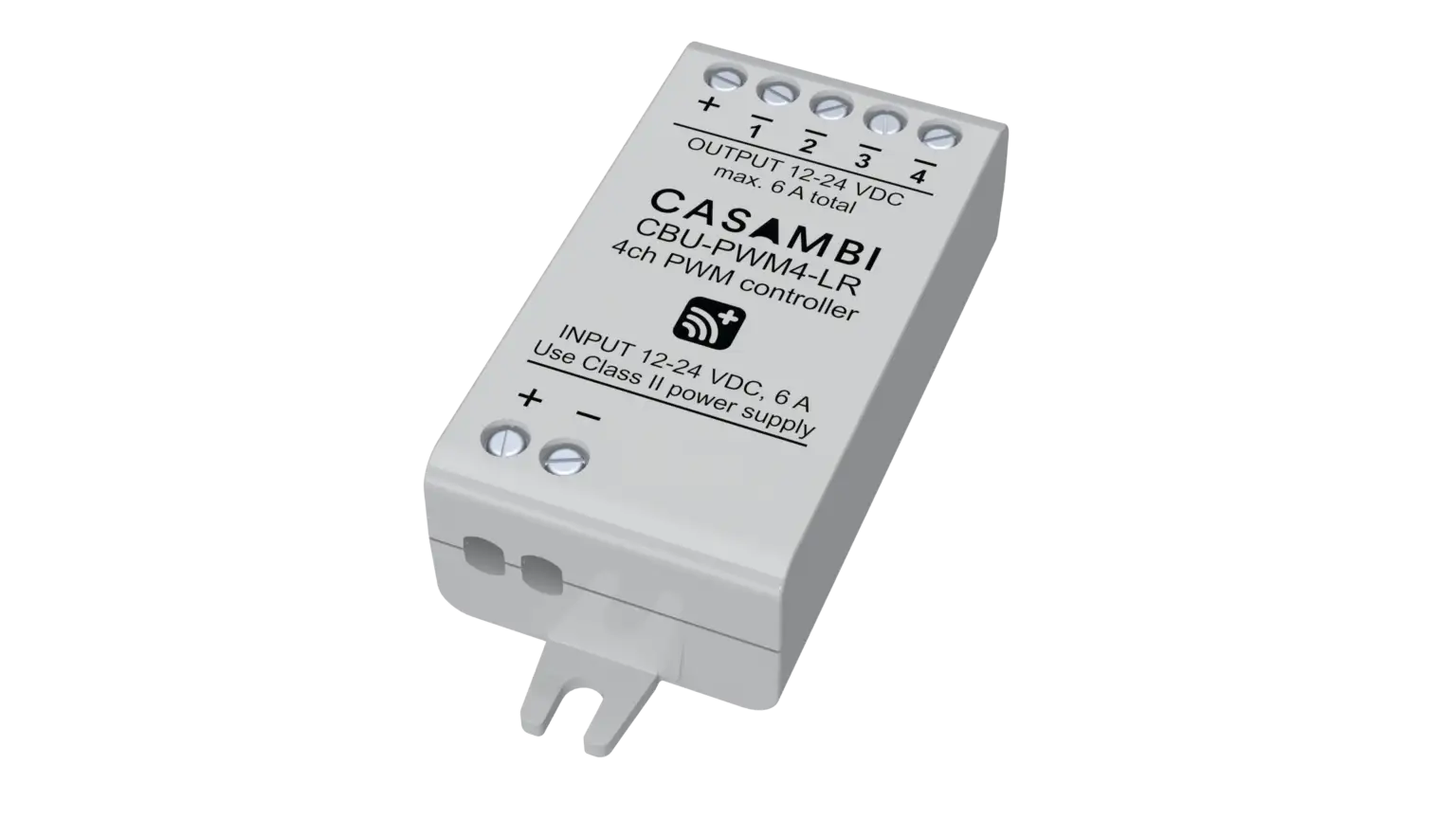

CBU-PWM4-LR is a Bluetooth-controllable, four-channel PWM dimmer for constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.

CBU-PWM4-LR can control up to four channels making it an ideal partner for RGBW and tunable white (TW) applications. The maximum combined output current is 6 A, which can be freely divided between all output channels. CBU-PWM4-LR is protected against overvoltage, overcurrent and short-circuit situations.

Input

• Voltage: 12–24 VDC, Class II
• Max. input current: 6,0 A
• No-load standby power: < 0,3 W

Output

• Output voltage: 12–24 VDC
• Max. output power: 144 W @ 24 VDC
• 72 W @ 12 VDC
• Max. output current: 6,0 A (can be freely divided between the channels)
• Min. load requirement: 3 W
• Dimming method: Pulse Width Modulation
• (PWM, freq. 400 Hz)

Radio transceiver

• Operating frequencies: 2402…2480 MHz
• Maximum output power: +8 dBm

Operating conditions

• Ambient temperature: ta : -20 to +45°C
• Max. case temperature, tc : +75°C
• Storage temperature: -25…+75°C
• Max. relative humidity: 0…80%, non-condensing
• Location of tc point: The tc point is marked on the enclosure.

Connectors

• Wire range, solid & stranded: 0,75–1,5 mm²
• 14–22 AWG
• Wire strip length: 6-7 mm
• Screw torque force: 0,4 Nm
• Input/output cable length: 3,0 m (Max.)

Mechanical data

• Dimensions: 72,6 x 30,0 x 18,0 mm
• Weight: 23 g
• Degree of protection: IP20 (indoor use only)
